Mô tả sản phẩm

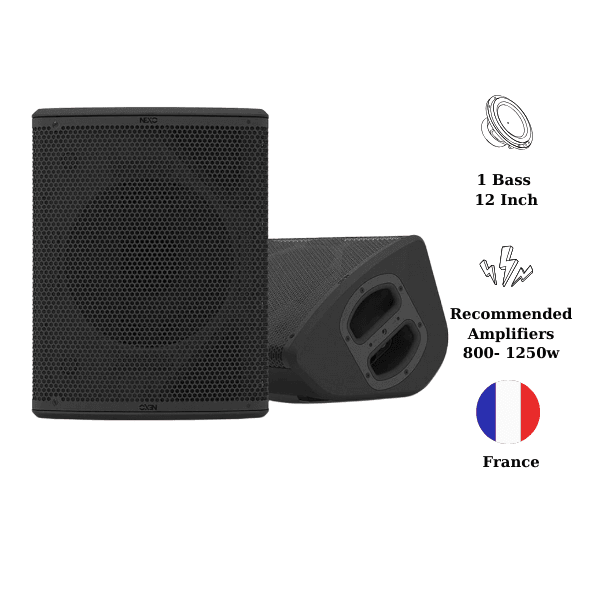

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 534mm x 432mm x 314mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.
Thông số sản phẩm
| Frequency Response (+6 dB) | 60 Hz – 20 kHz |
| Sensitivity 1W@1m | 107 dB |
| Peak SPL Level (1m) | 138dB Peak (Passive mode) / 140dB Peak (Active mode) |
| Recommended Amplifiers | 800 to 1250 Watts / 8Ω |
| HF Dispersion (according to horns) | 60°x60° – 90°x40° – Asymmetrical Dispersion 60° to 100°x40° |
| Crossover Frequency | 60 Hz, 85 Hz, 120 Hz |
| Nominal Impedance | Active mode (8Ω LF, 8Ω HF), Passive mode: 8Ω |
| Recommended Power | Active: (800 to 1270 W LF + 400 to 630 W HF) / Passive: 800 to 1270 W |
Đặc điểm nổi bật
Key Features
Compact, low-profile, curvilinear enclosure
12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
Variable HF directivity
Switchable Active/Passive modes
140dB peak SPL (Active Mode)
Threaded inserts on the back and on both sides for connection of mounting accessories
Stand fitting on both sides
4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Touring, installation and TIS versions
